| Rated output |
160 watts/4 ohm monaural
100 watts/8 ohm monaural |
| Frequency characteristics |
5Hz to 50 kHz (+0/-3dB)/8 ohm
5Hz to 25kHz (+0/-3dB)/4 ohm |
| Distortion rate (THD) |
0.02% (50-watts output at 1kHz) |
| S-N ratio |
120 dB (400Hz to 30kHz BPF) |
| Inputsensitivity/Inputimpedance |
1V/10 kohm |
| Residual noise |
25µV(400Hz to 30kHz at BPF) |
| Damping Factor |
200(8 ohm 1KHz) |
| Power consumption |
20 watts (1/8power output,100 watts/8 ohm)
30 watts (1/8power output,160 watts/4 ohm)
|
| Stand-by power |
6 watts (no signal output) |
| Supply voltage |
U.S.A.&Canadian model : AC 120V 60Hz
European model : AC 230V 50Hz |
| Input/output terminals |
Input connector (3P)
Power connector (3P)
Output connector (2P)
*No Input volume |
| Safety standard |
U.S.A.&Canadian model : UL6500/CSA E60065-00standard
European model : EN60065 : 1998 standard |
| Radio interference standard |
European model : CE standard |
| Working temperature range |
0°C to 40°C |

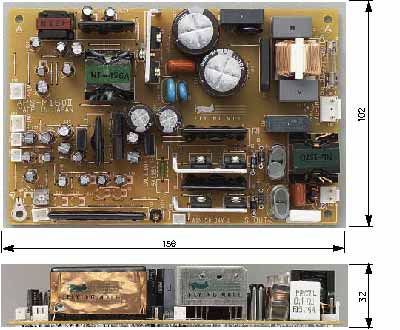

| Maximum overall size |
156 (W) x 102 (D) x 32 (H) mm |
| Weight |
About 280g |
